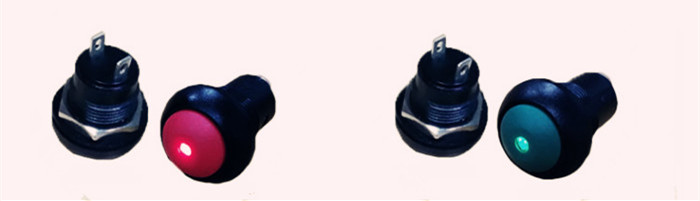

迷你型防水按鈕開關為通訊設備專用

IP67防塵防水型按鈕開關，迷你型防水按鈕開關，小體積防水按鈕開關廠，開關特點，分常開型常閉型功能，防塵防水，迷你型外觀，安裝方式簡便，具有高壽命等特點，廣泛用于電子電器，PLC，工控設備等等。

SPECIFICATIONS

CONTACT RATING:0.4 VA max.@ 20 V AC or DC max.

MECHANICAL LIFE:40,000 make-and-break cycles.

CONTACT RESISTANCE:Below 100m&typ.initial @ 2-4VDC,100mA.

INSULATION RESISTANCE:500M& min.

DIELECTRIC STRENGTH:500 V RMS@sea level.

OPERATING TEMPERATURE:-30℃ to 85℃.

MATERIALS

HOUSING AND BASE:Glass filled nylon 6/6 or 4/6,flame retardant,heat stabilized(UL94V-0)

ACTUATOR:Glass filled nylon 6/6,flame retardant,heat stabilized(UL94V-0),with standard internal o-ring seal.

SWITCH SUPPORT:Steel,whit nickel plate.

CONTACT/TERMINALS:Slive plate plated copper alloy

軍工，汽車，輪船，等設備上！搖頭開關/鈕子開關廣泛用于電腦周邊設備、多媒體喇叭、小家電、運動器材、燈飾、玩具、音箱、醫療器材、汽車零組件、防盜器材、警視系統,電動工具、醫療設備、電腦周邊設備、防盜設備、家電及通訊等產業。
